Rubber Tugboat Fenders for Boats Protection

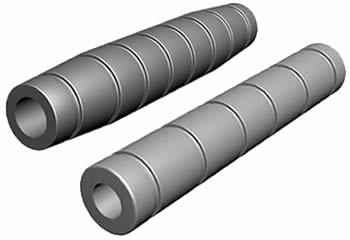

Tugboat fender with tapered ends (left) Tugboat fender with flat ends (right)
Tugboat fenders, as its name implies, are generally wound around tugboats to counterpart the impact force between two tugboats or between tugboat and docks. In conjunction with keyhole fenders or W & M fenders, they effectively protect boats and docks form damages during berthing.
Features:
- Strong and durable structure.
- With grooves for chains and straps for easier and firmer attachments.
- Round hollow chamber for easier installation.
- Suitable to be fasten to the sides, bow and stern of tugboat.
- Ideal for protecting tugboats, workboats, icebreakers and various types of vessels.
- Wide range of sizes and designs.
Normally, tugboat fenders are available in two main shapes: with tapered ends or flat ends. Normally, tugboat fenders with tapered ends are normally fastened to bow and stern of vessels, while those with flat ends are ideal for both sides of vessels. Here are the detail specifications of these two types of tugboat fenders below:
Tugboat fender with tapered ends
| Tugboat fenders with tapered ends (mm) | |||||||
|---|---|---|---|---|---|---|---|
| Type | Outer diameter R1 | Inner diameter R2 | R3 | A | B | C | D |
| TFB-1 | 200 | 150 | 100 | 50 | 15 | 150 | 600 - 900 |
| TFB-2 | 250 | 190 | 125 | 50 | 15 | 150 | 600 - 900 |
| TFB-3 | 300 | 225 | 150 | 50 | 15 | 200 | 600 - 900 |
| TFB-4 | 350 | 260 | 175 | 70 | 20 | 200 | 600 - 900 |
| TFB-5 | 400 | 300 | 200 | 70 | 20 | 200 | 600 - 900 |
| TFB-6 | 500 | 375 | 250 | 70 | 30 | 250 | 600 - 900 |
| TFB-7 | 600 | 450 | 300 | 85 | 30 | 250 | 600 - 900 |
| TFB-8 | 700 | 525 | 350 | 85 | 40 | 300 | 600 - 900 |
| TFB-9 | 800 | 600 | 400 | 85 | 40 | 300 | 600 - 900 |

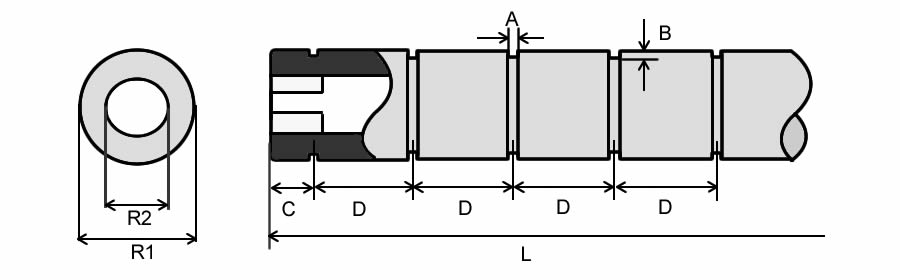

Tugboat fender with flat ends
| Tugboat fenders with flat ends (mm) | ||||||
|---|---|---|---|---|---|---|
| Type | Outer diameter R1 | Inner diameter R2 | A | B | C | D |
| TFS-1 | 100 | 50 | 30 | 10 | 100 | 600 - 900 |
| TFS-2 | 150 | 75 | 30 | 10 | 100 | 600 - 900 |
| TFS-3 | 200 | 100 | 50 | 15 | 150 | 600 - 900 |
| TFS-4 | 250 | 125 | 50 | 15 | 150 | 600 - 900 |
| TFS-5 | 300 | 150 | 50 | 15 | 200 | 600 - 900 |
| TFS-6 | 350 | 175 | 70 | 20 | 200 | 600 - 900 |
| TFS-7 | 400 | 200 | 70 | 20 | 200 | 600 - 900 |
| TFS-8 | 500 | 250 | 70 | 30 | 250 | 600 - 900 |
| TFS-9 | 600 | 300 | 85 | 30 | 250 | 600 - 900 |
| TFS-10 | 700 | 350 | 85 | 40 | 300 | 600 - 900 |
| Length: Unit length up to 10m according to fenders' diameters can be supplied. Connection plugs can be used to extend the length of tugboat fenders. Custom sizes are available depending on custom specifications. | ||||||

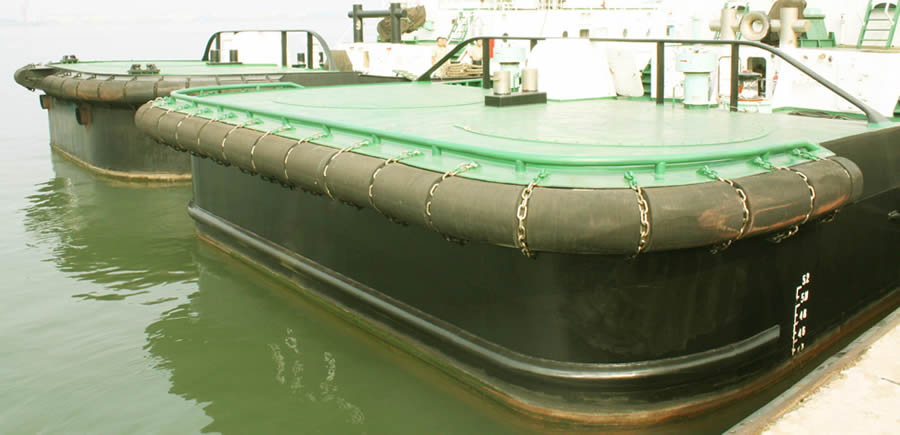

Tugboat fenders are ideal for protecting various types of vessels.
