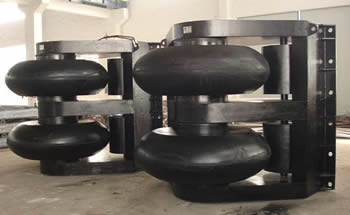

Roller rubber fenders

Roller rubber fenders feature wheels fixed to a metal frame to allow rotations along with movements of berthing vessels to counteract the impact force, control berthing speed and prevent hull damage. Meanwhile, roller rubber fenders are great combination of excellent energy absorption and low reaction force whatever the berthing angles are.

Features:

• Rotatable rubber wheels mounted to fixed metal frame can adapt to ships' movements.
• Rated compression deformation up to 40% for higher energy absorption.
• Free rotation without sliding friction between the fender and vessels to avoid damages of paint coating of vessels.
• Allow smooth berthing at all angles.
• Capable to guide ships in restricted spaces.
• Applicable to all types of restrictions on docks and waterways.
• Low maintenance.
• Easy and quick to install.

Applications:

• Shipyards.
• Dock entrance.
• Roll-on-roll-off ships.
• Berth corner.
• Lock corners,
• Docks with limitations on ships' berthing direction and speed.

Specifications:

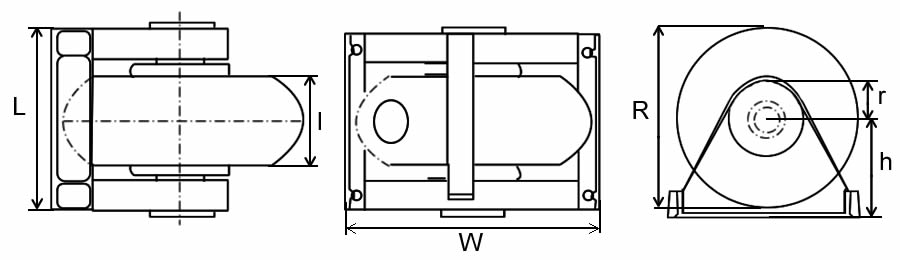

RFR1 Series Roller Rubber Fender (mm)
Type	L	l	W	R	r	h	Max deflection (mm)	Maximum burthen (T)	Energy absorption (T-m)
RFR1-1	420	200	695	600	110	320	125	7	0.25
RFR1-2	510	250	870	750	140	400	157	11	0.48
RFR1-3	610	300	1040	900	165	480	184	15	0.88
RFR1-4	820	400	1380	1200	220	640	260	27	1.96
RFR1-5	1010	500	1740	1500	275	800	325	43	3.84
RFR1-6	1210	600	2080	1800	330	960	390	62	6.63
RFR1-7	1410	700	2440	2100	385	1155	455	84	10.7
RFR1-8	1610	800	2770	2400	440	1280	520	110	15.7

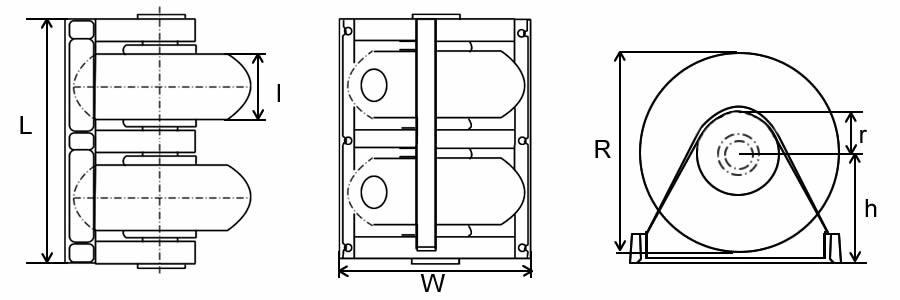

RFR2 Series Roller Rubber Fender (mm)
Type	L	l	W	R	r	h	Max deflection (mm)	Maximum burthen (T)	Energy absorption (T-m)
RFR2-1	770	200	695	600	110	320	125	14	0.5
RFR2-2	935	250	870	750	140	400	157	21	1.0
RFR2-3	1120	300	1040	900	165	480	184	31	1.7
RFR2-4	1500	400	1380	1200	220	640	260	55	3.9
RFR2-5	1850	500	1740	1500	275	800	325	86	7.7
RFR2-6	2215	600	2080	1800	330	960	390	124	13.3
RFR2-7	2590	700	2440	2100	385	1155	455	169	21.0
RFR2-8	2950	800	2770	2400	440	1280	520	220	32.0

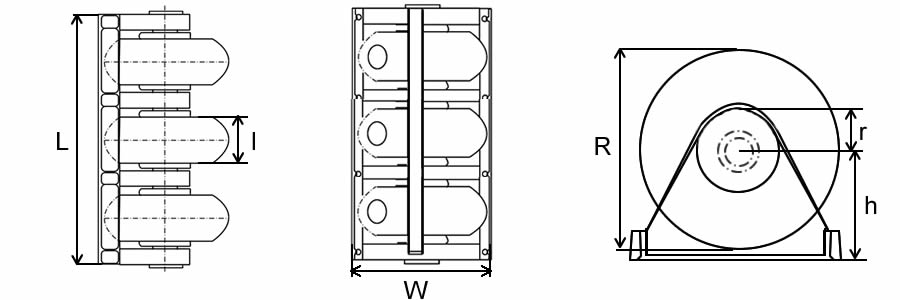

RFR3 Series Roller Rubber Fender (mm)
Type	L	l	W	R	r	h	Max deflection (mm)	Maximum burthen (T)	Energy absorption (T-m)
RFR3-1	1120	200	695	600	110	320	125	21	0.7
RFR3-2	1360	250	870	750	140	400	157	32	1.4
RFR3-3	1630	300	1040	900	165	480	184	46	2.5
RFR3-4	2180	400	1380	1200	220	640	260	82	6.0
RFR3-5	2690	500	1740	1500	275	800	325	128	11.0
RFR3-6	3220	600	2080	1800	330	960	390	185	20.0
RFR3-7	3770	700	2440	2100	385	1155	455	252	32.0
RFR3-8	4290	800	2770	2400	440	1280	520	329	47.0
