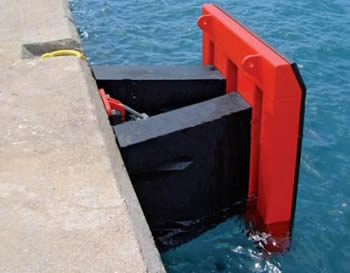

Element Rubber Fenders with Modular Design

Element rubber fenders are characterized by modular design with unlimited combination of lengths and directions. Generally, it is composed of pairs of legs and a UHMW-PE shield with large contact surface to low surface force. As your request, it also can be combined with steel panels for heavy duty applications where there are bow flares, belting, low hull pressure and high tides.

Applications:

• Large sized docks of 10,000 tonnages.
• Container terminals.
• Tanker or small craft berth.
• Fender walls.
• RoRo and cruise ships.
• Berths, etc.

Features:

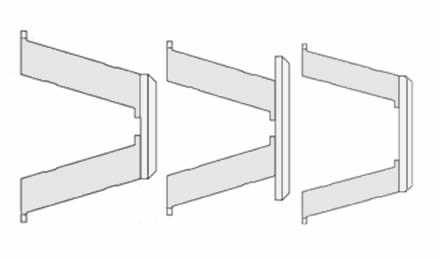

• Modular design allows limitless setting out arrangements.
• Various mounting manners: horizontally or vertically, symmetrical or asymmetrical for optimum performance.
• High efficient geometry with excellent energy absorption and low reaction force.
• Large frontal UHMW-PE pad with a low fiction coefficient of 0.07 to facilitate ships' berthing.
• With excellent shear resistance in lengthwise plane.
• Small footprint makes it ideal for areas with limited spaces.
• Adapt to different angle compression.
• Applicable for berths and terminals handling all types of vessels.
• Full range of compounds and sizes are available. Custom designs are also welcomed.
• In accordance with PIANC 2002 and ASTM F-2192-05.
• Easy and quick to install.
• Low maintenance.

Specification:

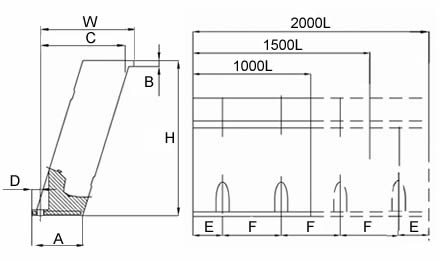

Specification of legs of element rubber fenders (mm)
Types	H	W	A	B	C	D	E	F	Anchors
ERF-1	250	218	109	20 - 27	152	33	50	300	M20
ERF-2	300	260	130	23 - 32	184	38	50	300	M24
ERF-3	400	330	165	25 - 35	248	41	250	500	M24
ERF-4	500	390	195	28 - 37	306	42	250	500	M30
ERF-5	550	420	210	32 - 38	336	42	250	500	M30
ERF-6	600	450	225	35 - 45	366	42	250	500	M30
ERF-7	700	540	270	35 - 45	428	56	250	500	M36
ERF-8	750	570	285	38 - 45	455	56	250	500	M36
ERF-9	800	600	300	38 - 45	488	56	250	500	M36
ERF-10	900	670	335	42 - 50	550	60	250	500	M42
ERF-11	1000	730	365	46 - 58	610	60	250	500	M42
ERF-12	1200	870	435	46 - 60	748	61	250	500	M48
ERF-13	1400	990	495	50 - 65	856	67	250	500	M48
ERF-14	1600	1130	565	50 - 65	978	76	250	500	M56
Length: 600mm to 2800mm or custom lengths.
