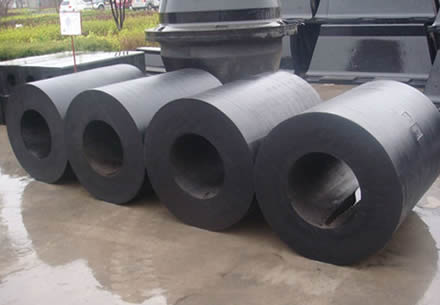

Why Do We Need Cylindrical Fenders for Vessel Protection

Cylindrical fenders are popular and commonly used bump-proof structures that can counteract the force generated during mooring and protect different kinds of vessels and docks from being damaged. Cylindrical fenders are easy to install, operate and replace taking advantages of simple hollow structures. Meanwhile, they are versatile, cost effective and suitable to match various types of applications.

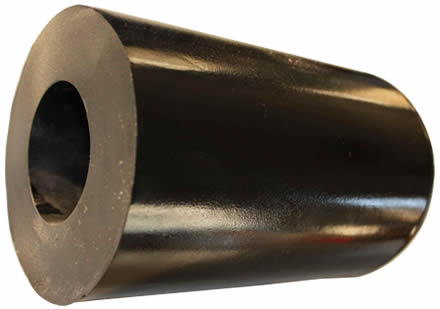

Features:

• Simple and economical design.
• Low reaction force and low surface pressure.
• Superior energy absorption capability.
• Ensure a safe and linear berthing for both large and small vessels.
• Can be easily installed horizontally, vertically or diagonally, regardless ship sizes and port sizes.
• Countless combinations of lengths and diameters to suit specific applications.

Specifications & Performance:

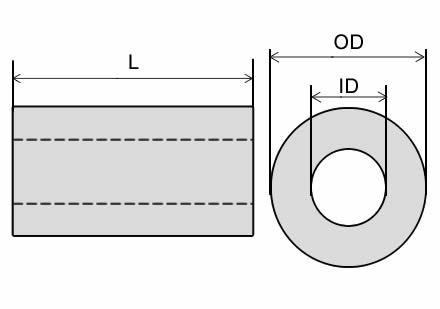

Type	Specification (mm)			Performance of cylindrical fenders (1000mm in length) Design compressive deflection (%)
	Outer diameter (OD)	Inner diameter (ID)	Length (L)	Reaction force (KN)		Energy absorption (KJ)
				Standard type	High reaction type	Standard type	High reaction type
RCYF-1	150	75	500 to 18000 as your request	44.1	72.6	1.5	2.26
RCYF-2	200	100		59.8	95.1	2.6	4.2
RCYF-3	250	125		74.6	120.0	4.1	6.5
RCYF-4	300	150		89.3	143.2	5.9	9.4
RCYF-5	400	200		118.7	191.0	10.4	16.6
RCYF-6	500	250		148.1	239.0	16.1	26.2
RCYF-7	600	300		178.5	286.0	23.5	37.3
RCYF-8	700	350		208.0	334.0	31.4	50.0
RCYF-9	800	400		237.4	382.5	41.2	65.7
RCYF-10	900	450		267.8	430.0	52.0	84.3
RCYF-11	1000	500		297.2	479.0	63.8	103.0
RCYF-12	1100	550		331.0	530.5	77.2	124.3
RCYF-13	1200	600		363.0	585.0	95.2	137.0
RCYF-14	1300	650		392.0	631.8	108.0	173.9
RCYF-15	1400	700		421.8	676.0	127.5	205.3

Installation methods

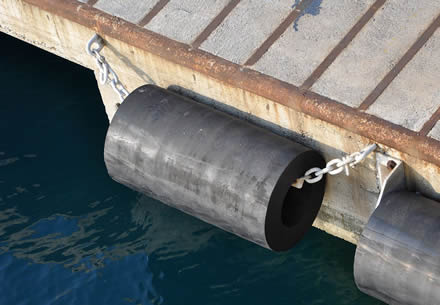

Cylindrical fenders can be installed by different methods using suspension chains or metal brackets according to their dimensions as shown in the picture.

Outer diameter	Anchors	U anchors	Steel bars	Shackles
150mm	13 -19	25 - 35	20 - 35	13 - 19
300mm	16 - 26	25 - 40	30 - 45	16 - 26
500mm	25 - 36	40 - 50	45 - 60	25 - 36
600mm	25 - 36	40 - 50	45 - 60	25 - 36
800mm	28 - 38	50 - 60	75 - 90	28 - 38
1000mm	28 - 38	55 - 65	85 - 105	28 - 38
1200mm	30 - 40	60 - 70	100 - 140	30 - 40
1400mm	32 - 42	65 - 75	105 - 150	32 - 42
1500mm	32 - 42	65 - 75	105 - 150	32 - 42
1600mm	34 - 44	70 - 85	120 - 180	34 - 44
