Arch Fenders with Optional UHMW-PE Layers

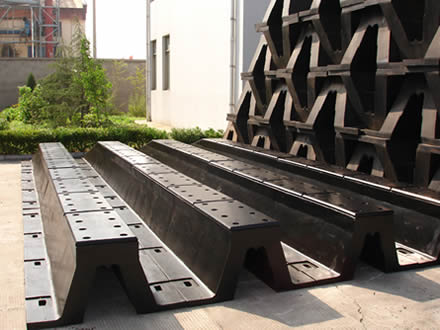

Arch fenders, sometimes called as V type fenders, can provide trouble-free service for protecting vessels and docks from damages even under the most severe conditions. Mounted to the docks horizontally or vertically using bolts, the fenders can absorb impact energy and dissipate stress evenly with improved performance comparing with cylindrical fenders.

Features:

• Low reaction force and higher energy absorption than cylindrical fenders
• Single one-piece design.
• Strong, durable and long lasting.
• Easy and quick to install & maintenance free.

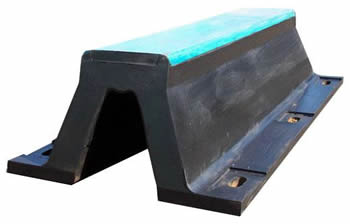

• Bolt-on UHMW-PE layer to reduce friction between the fenders and berthing vessels and prolong the life-span of rubber fender body.
• Ideal for berths serving all types of small and moderate vessels even in severe conditions.
• Recommended for almost all types of applications, such as quay walls, berths, general cargo and work boat harbors.
• Various types, height and widths are available.

Types:

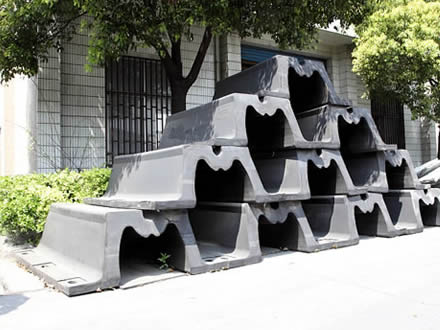

Type	Arch fender AF	Super arch fender SAF	Improved super arch fender ISAF	Modified arch fender MAF
Shape
Properties	Manufactured entirely from rubber.	With steel plates embedded inside the base of the fender.	With base steel plates, top steel plates and bolt on UHMW-PE layer.	Featuring an M-shaped structure with base steel plates.

Specifications:

Type	Main specification (mm)
	H	L	L1	C	Q × n	B	B1	B2	B3	h	a	b	e	f
RAF-1	150	1000	1075	110	855 × 1	98	240	300	96	22.5	50	95	25	55
RAF-2		1500	1575	112.5	675 × 2	98	240	300	96	22.5	50	95	25	55
RAF-3		2000	2075	215	620 × 3	98	240	300	96	22.5	50	95	25	55
RAF-4		2500	2575	220	785 × 4	98	240	300	96	22.5	50	95	25	55
RAF-5		3000	3075	215	715 × 4	98	240	300	96	22.5	50	95	25	55
RAF-6		3500	3575	220	671 × 5	98	240	300	96	22.5	50	95	25	55
RAF-7	200	1000	1100	120	860 × 1	130	320	400	128	35	58	105	29	75
RAF-8		1500	1600	120	680 × 2	130	320	400	128	35	58	105	29	75
RAF-9		2000	2100	120	620 × 3	130	320	400	128	35	58	105	29	75
RAF-10		2500	2600	122.5	785 × 3	130	320	400	128	35	58	105	29	75
RAF-11		3000	3100	120	715 × 4	130	320	400	128	35	58	105	29	75
RAF-12		3500	3600	120	672 × 5	130	320	400	128	35	58	105	29	75
RAF-13	300	1000	1150	140	870 × 1	225	490	600	195	33	70	140	35	105
RAF-14		1500	1650	140	685 × 2	225	490	600	195	33	70	140	35	105
RAF-15		2000	2150	137.5	625 × 3	225	490	600	195	33	70	140	35	105
RAF-16		2500	2650	140	790 × 3	225	490	600	195	33	70	140	35	105
RAF-17		3000	3150	145	715 × 4	225	490	600	195	33	70	140	35	105
RAF-18		3500	3650	140	674 × 5	225	490	600	195	33	70	140	35	105
RAF-19	400	1000	1200	150	900 × 1	300	670	800	260	40	82	165	41	120
RAF-20		1500	1700	150	700 × 2	300	670	800	260	40	82	165	41	120
RAF-21		2000	2200	147.5	635 × 3	300	670	800	260	40	82	165	41	120
RAF-22		2500	2700	150	800 × 3	300	670	800	260	40	82	165	41	120
RAF-23		3000	3200	150	725 × 4	300	670	800	260	40	82	165	41	120
RAF-24		3500	3700	150	680 × 5	300	670	800	260	40	82	165	41	120
RAF-25	500	1000	1250	160	930 × 1	375	840	1000	325	45	94	180	47	140
RAF-26		1500	1750	160	715 × 2	375	840	1000	325	45	94	180	47	140
RAF-27		2000	2250	157.5	645 × 3	375	840	1000	325	45	94	180	47	140
RAF-28		2500	2750	160	810 × 3	375	840	1000	325	45	94	180	47	140
RAF-29		3000	3250	165	730 × 4	375	840	1000	325	45	94	180	47	140
RAF-30		3500	3750	160	686 × 5	375	840	1000	325	45	94	180	47	140
RAF-31	600	1000	1300	170	960 × 1	450	1010	1200	390	54	100	195	50	160
RAF-32		1500	1800	170	730 × 2	450	1010	1200	390	54	100	195	50	160
RAF-33		2000	2300	167.5	655 × 3	450	1010	1200	390	54	100	195	50	160
RAF-34		2500	2800	170	820 × 3	450	1010	1200	390	54	100	195	50	160
RAF-35		3000	3300	170	740 × 4	450	1010	1200	390	54	100	195	50	160
RAF-36		3500	3800	170	692 × 5	450	1010	1200	390	54	100	195	50	160
RAF-37	800	1000	1400	180	1040 × 1	600	1340	1600	520	72	136	270	68	260
RAF-38		1500	1900	180	770 × 2	600	1340	1600	520	72	136	270	68	260
RAF-39		2000	2400	180	680 × 3	600	1340	1600	520	72	136	270	68	260
RAF-40		2500	2900	182.5	845 × 3	600	1340	1600	520	72	136	270	68	260
RAF-41		3000	3400	180	760 × 4	600	1340	1600	520	72	136	270	68	260
RAF-42	1000	1000	1500	200	1100 × 1	750	1680	2000	650	90	136	290	68	300
