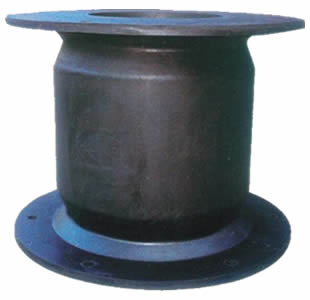

Drum Shaped Rubber Cell Fenders

Cell fenders, also known as drum fenders, feature compressed drum-shaped structures for providing high force absorption and being little influenced by touches from berthing vessels at bevel angles. With simple but efficient geometry structure, cell fenders are extremely durable and stable especial where harsh berthing movements may be present. Meanwhile, it can provide minimum reaction per tom-meter energy comparing with cone fenders, arch fenders or others.

Features:

• High efficiency and excellent shear resistance.
• High performance at angular berthing in that it can absorb energies from all directions equally.
• Impingements plates are available for smaller reaction force on vessels and even load distribution.

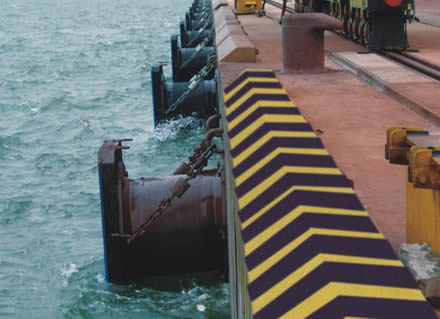

• Ideal for low hull pressure systems, oil and LNG facilities, multi-purpose berths, offshore platforms and various types of terminals.
• A variety of sizes and types.
• Easy to install and maintain.
• Complying with PIANC 2002, ASTM F-2192-05 or other custom standards.

Details

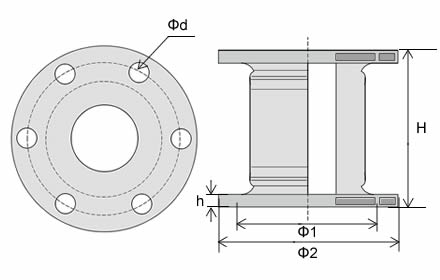

Specification:

Types	Main specification (mm)
	H	Φ1	Φ2	Φd		h	Bolt size
				No.	Size
CERF-1	400	550	650	4	30	25	M22
CERF-2	500	550	650	4	32	25	M24
CERF-3	630	700	840	4	39	30	M27
CERF-4	800	900	1050	6	40	30	M30
CERF-5	1000	1100	1300	6	47	35	M36
CERF-6	1150	1300	1500	6	50	40	M42
CERF-7	1250	1450	1650	6	53	45	M42
CERF-8	1450	1650	1850	6	61	47	M48
CERF-9	1600	1800	2000	8	61	50	M48
CERF-10	1700	1900	2100	8	66	50	M56
CERF-11	2000	2000	2200	8	74	50	M64
CERF-12	2250	2300	2550	10	74	60	M64
CERF-13	2500	2700	2950	10	74	70	M64
CERF-14	3000	3150	3350	12	90	75	M76

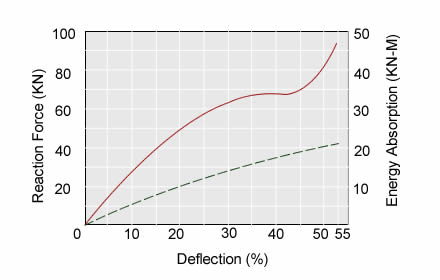

Performance

Types	Super high reaction force P3				Super high reaction force P2				High reaction force P1				Standard reaction force P0				Low reaction force P01
	52.5%		55%		52.5%		55%		52.5%		55%		52.5%		55%		52.5%		55%
	R	E	R	E	R	E	R	E	R	E	R	E	R	E	R	E	R	E	R	E
CERF-3	296	82	315	87	263	73	279	77	228	63	242	68	175	48	185	51	140	39	149	41
CERF-4	431	154	465	166	383	138	413	148	330	118	356	128	280	98	296	105	221	75	228	80
CERF-5	747	325	790	345	660	289	705	306	572	252	610	263	445	195	470	208	35	158	380	168
CERF-6	990	505	1050	530	885	445	930	475	760	388	811	408	589	297	626	315	470	240	506	255
CERF-7	1175	655	1250	684	1042	574	1108	607	902	497	960	526	696	382	741	405	552	306	590	324
CERF-8	1580	1008	1680	1066	1402	895	1491	948	1215	776	1292	821	936	596	996	632	750	478	794	504
CERF-9	1756	1260	1890	1362	1558	1120	1680	1210	1351	970	1459	1048	1140	801	1205	836	894	640	955	678
CERF-10	2171	1624	2309	1720	1928	1442	2050	1526	1672	1250	1775	1323	1287	960	1366	1018	1027	769	1092	815
CERF-11	2995	2645	3196	2799	2668	2348	2835	2486	2310	2040	2556	2155	1781	1564	1892	1656	1425	1252	1510	1328
CERF-12	4226	4179	4490	4425	3748	3703	3986	3927	3249	3215	3454	3404	2502	2472	2660	2620	2125	2104	2258	2226
CERF-13	5217	5732	5545	6068	4630	5088	4920	5386	4012	4410	4265	4668	3088	3391	3280	3592	2624	2885	2788	3050
CERF-14	-	-	-	-	-	-	-	-	5790	6710	6750	7210	4380	5110	5190	5460	3730	4310	4400	4660
NOTE: Rated compression deflection = 52.5%; maximum compression deflection = 55%. R = Reaction force9 (KN); E = Energy absorption (KN-M). Performance tolerance: ±10%
